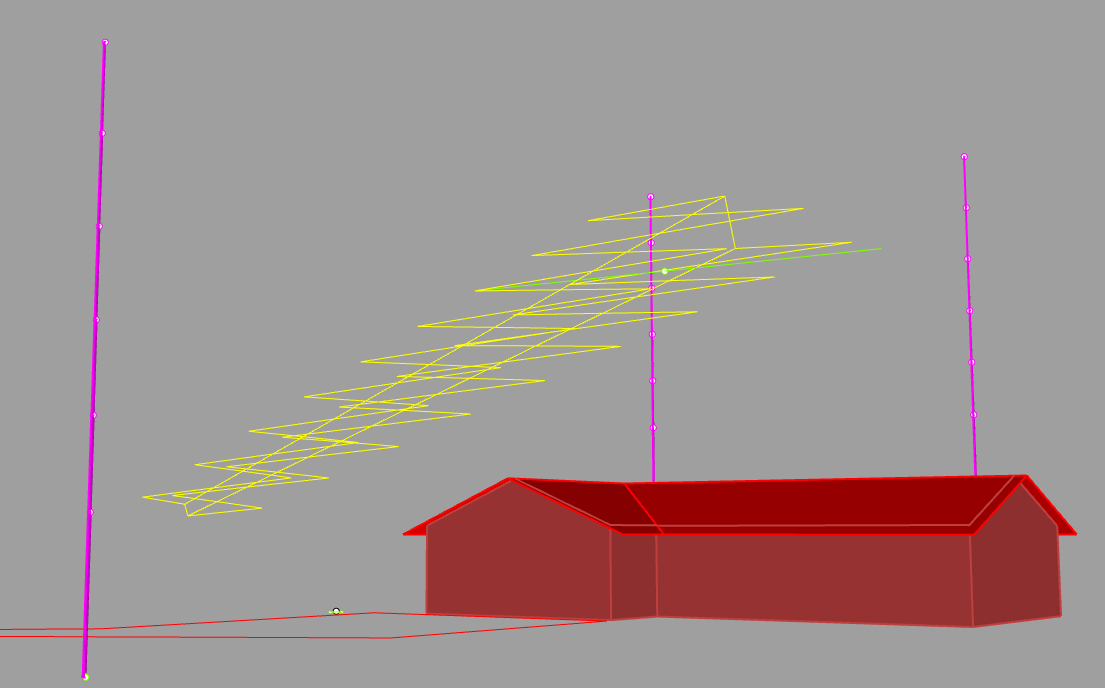

Log Periodic Sawtooth Array
18-30MHz, 17 elem., 25m x 9.25m Size

Examples Index

Other Measurements

• Boom Spacing @ Apex: 250mm
• Alpha: 6.868°
• Psi: 1.693°

Charts, Graphs & Models

• FS Gain: 9.24 ≤ dBi ≤ 10.24, Ref: SVG
• N-S Gain: 12.15 ≤ dBi ≤ 12.8, Ref: SVG
• 1:1 ≤ SWR ≤ 1.5:1, Ref: PNG
• Accuracy: 0.99 ≤ AGT ≤ 1.00 @ 14-30MHz
• Download: ZIP Archive NEC, ANT, MAA, and IGES
